Bass extension for the C 15 and C 30 Constant Curvature Line Array. Integrated and visually unobtrusive flying system for flown array applications in fixed installations. The high-performance 18“ neodymium driver in combination with the optimized bass reflex technology results in a particularly impulse-frequent and deep bass reproduction.
SPECIFICATIONS
| Speaker Components | 18“ Nd (4,5“ VC) |
| Description | Passive Bass Extension |
| Power AES / Peak | 1500 W / 4500 W |
| Impedance nominal | 8 Ω |
| SPL 1 W / Peak @ 1 m | 101 dB / 138 dB |
| Usable Range - 6 dB | 30 Hz - 200 Hz |
| Tuning Frequency excursion minimum | 36 Hz |
| Connectors | 3 x Speakon NL4 in/out Coding (2x): 1+/- loop thru, 2+/- Sub Coding (1x): 1+/- Sub, 2+/- loop thru |
| Rigging / Fittings | Rigging connectors for use w/ C15/C30 on C-Series flying frame |
| Weight | 46 kg |
| Size height x width x depth | 52,0 x 70,0 x 70,0 cm |

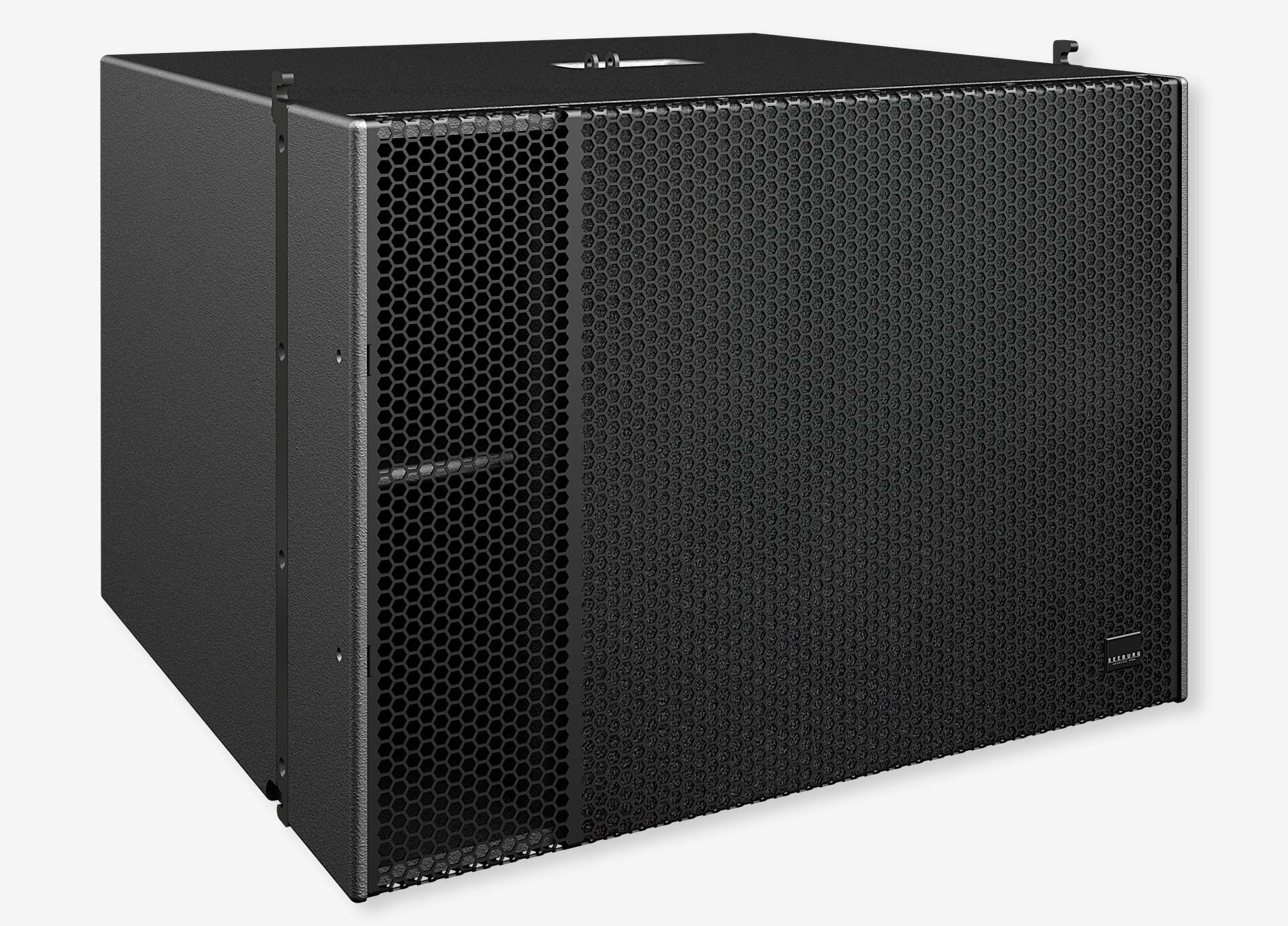

Acoustic Line - C Sub 1801 Passive Bass Extension
Stok kodu: s-c1801
4.390,00$Fiyat
KDV hariç |
4-16 hafta arası teslim
